AVEVA Engineering™

    Manage the evolving multi-discipline engineering data for tagged items such as lines and equipment

    AVEVA Engineering enables multi-disciplinary engineering teams to work together in an effective manner as they jointly develop the definition of all the key engineering items involved in plant or marine projects.

    • Proven, scalable, multi-user technology with sophisticated access controls.
    • Provides a concurrent, multi-discipline working environment for engineering teams on both plant and marine projects.
    • Puts each engineering discipline in full control of its own data, while allowing other users to view the complete data.
    • Each discipline can maintain issued and working versions of its data.

    Efficient collaborative working is supported by object-level revision control across engineering disciplines.

    Engineering data created or updated by one discipline – process, mechanical, instrumentation or electrical – is issued to the rest of the project team at a controlled release level. Other engineering disciplines can confidently use this change-controlled data in their own workflows.

    Each discipline retains control of which changes to accommodate and when to do so, combining flexible and efficient working with robust control of data consistency.

    • Automatic change recording and highlighting
    • Users may selectively view change information and can highlight additions, deletions or modifications.
    • In-built status control gives engineers better visibility of information quality
    • A wide range of inconsistencies can be detected in the engineering data itself and across the engineering, 3D, schematic, instrumentation and electrical datasets.

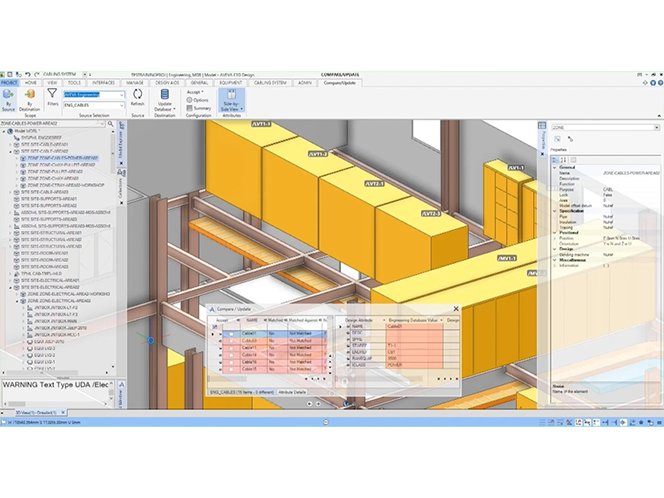

    • Compare parts of the Engineering data against data created in other AVEVA products or in external systems.
    • Apply updates selectively as, where and if required. This makes the alignment with updated data from other engineering departments easier and faster.
    • Version-controlled datasheets can be created from predefined project templates, and can be used for data input and editing while working on the deliverable document.
    • Data changed through list views is reflected in the datasheet views and vice versa, enabling users to choose their preferred input methods.
    • Datasheet version control is provided through customer-defined revision schemas.
    • ‘Round-tripping’ information to external agencies, such as equipment suppliers, is supported reliably through Excel import/export functions.
    • Change highlighting is applied to re-imported data also, enabling any changes to be accepted or rejected before updating the database.
    • All aspects of the product, including the data model, engineering discipline boundaries and access rights, are highly configurable.
    • A Microsoft® Office Fluent™– based user interface and familiar spreadsheet functionality makes the product quick to learn and easy to use.
    • Configurable, customer-defined Project Breakdown Structures (PBS) can be defined to suit project and company standards.
    • The PBS mechanism offers a very flexible way to navigate and access the project data, according to each user’s role.
    • Because AVEVA Engineering stores data in the same project environment as the 3D and schematic data, a PBS can be defined that includes objects from all domains.

    A wide variety of high- quality, formatted reports can be configured as required and produced directly from the database. These can include:

    • line lists
    • equipment lists
    • tag registers
    • ad-hoc reports, progress and completeness reports, status charts etc.
    • With the same technology infrastructure as AVEVA E3D™, PDMS, OutfittingDiagrams and Schematic 3D Integrator products, AVEVA Engineering requires no new system administration or customisation/configuration skills.
    • Compatibility with AVEVA Global allows the product to be used across even the most complex multilocation, distributed engineering projects.

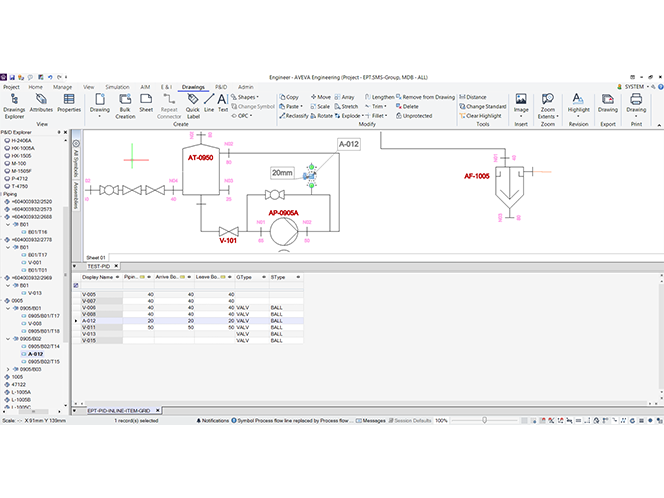

    • Access to data created in AVEVA E3D, AVEVA PDMS and/or AVEVA Outfitting, and to P&ID and other diagramming data held in AVEVA schematic databases, provides unrivalled integration opportunities.
    • Project engineers can access much more extensive data.
    • Selectively connecting different data sets enables transitions between parallel and single-source working, to suit different stages of the project.
    • Data and documents generated from AVEVA Engineering can be published to AVEVA NET Workhub and Dashboard for enterprise-wide use.

    AVEVA Engineering enables multi-disciplinary teams of engineers to jointly develop the definition of all the key engineering items (such as lines, equipment and valves) and their key attributes.

    Its highly configurable data model allows it to meet a wide range of project, customer and industry requirements, and to manage virtually any scope of project engineering data. Each discipline retains full control of its information relating to any item.

    A wide variety of fully formatted reports can be generated automatically, such as master tag registers, line lists, equipment lists or valve lists, and any kind of ad-hoc or departmental report.

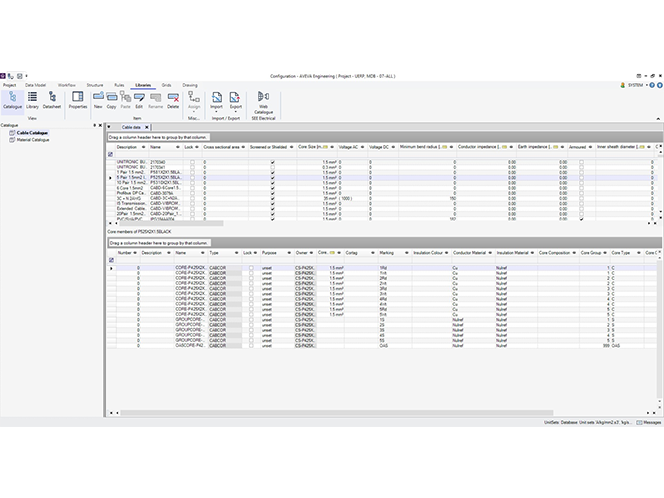

    Users can easily view, create and modify data using spreadsheet and explorer-style interfaces, and create views according to need. For example:

    • a standard engineering list, potentially enabling several items to be modified in a single action
    • specialist views for specialist tasks
    • a navigable plant breakdown structure.

    Database access is fully controlled at all times, controlling how much of the data the user may view and/or change. All changes are stored automatically, and information about changes is accessible to other users on demand.

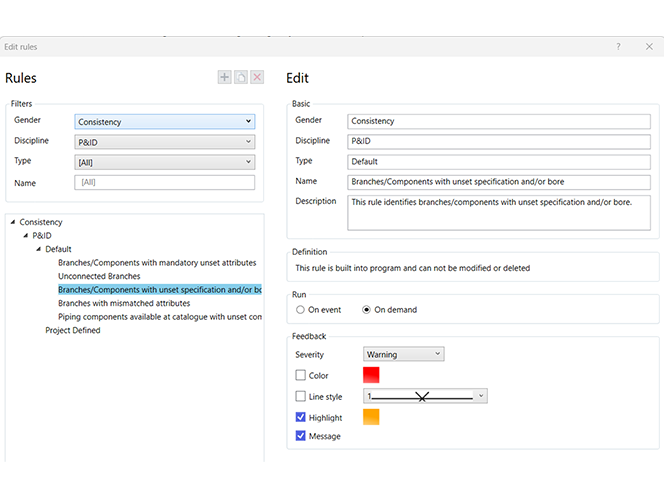

    Configurable consistency checks can be applied across the database at any time to check data quality, while built-in tools enable the status of individual objects to be carefully controlled and made visible to other users.

    Compare and Update utilities allow the identification of inconsistent data, whether from other AVEVA products or external sources.

    Built on leading-edge AVEVA technology, AVEVA Engineering supports distributed, multi-location working with AVEVA Global. It includes .NET APIs and the powerful PML programming language, enabling all kinds of project, customer, or industry configurations, customisations and automations to be applied.

    AVEVA Engineering is also Citrix Ready. This gives customers yet more flexibility in the way in which they configure and control projects, in particular with respect to distributed engineering teams and mobile engineers. The use of Citrix can even be combined with the use of the world-leading AVEVA Global™ technology on a single project.

    More effective management, control and exploitation of your data assets.

    • Gather engineering data out of all those disconnected spreadsheets and into a database.

    Increased design efficiency and quality

    • Enables earlier detection of a wider range of data inconsistencies during design, reducing the risk of costly, late design changes and rework.

    Efficient and flexible multi-location, global working

    • Supports AVEVA Global, for effective collaboration across distributed, multi-discipline engineering teams.

    Reduced impact of changes on cost, schedule, quality and risk.

    • Changes can be implemented more quickly, and controlled and communicated more effectively

    Enables new, more effective working practices.

    • AVEVA Engineering offers unrivalled opportunities for integrated working across schematics, engineering and 3D design

    NEW! Design in Context

    Design in Context delivers relevant, trusted information from your Digital Asset directly to an engineer's fingertips for better, faster decision-making and increased productivity and design quality.

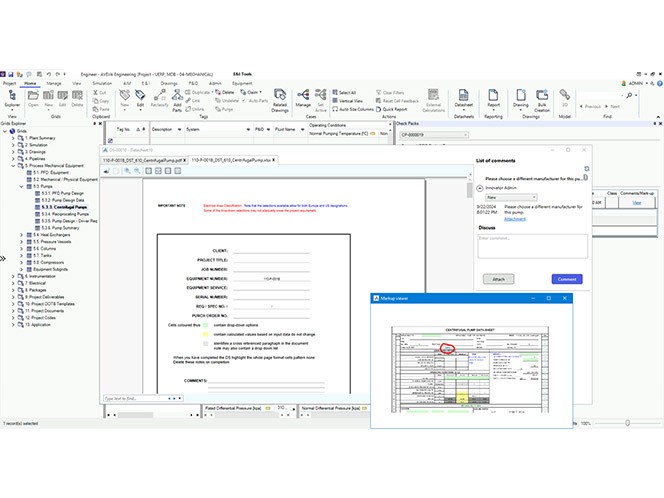

    Once configured to point to your AVEVA NET repository, selecting an object in the list data activates Design in Context’s ‘Browse’ button. This opens a new side panel that lists all related available documentation in the Digital Asset. An embedded universal viewer presents this information directly inside AVEVA Engineering.

    Immediate information access with less disruption lets you focus on the high-value design work.

    Design in Context

    Selecting a tagged object enables an engineer to immediately view any available related information, such as a data sheet, to support rapid decision making.

    Download our product literature

    Ask for a Business Value illustration

    AVEVA Engineering Business Value Calculator

    This interactive calculator illustrates the level of savings that
    AVEVA Engineering could deliver in your business.

    Contact us now to ask for a demonstration, or

    Talk to AVEVA at an event near you

    Watch the Video



    Contact us now to ask for a demonstration

    Watch a Webinar



    AVEVA Webinar on-demand recording available

    Watch on-demand webinars

    Controlled object revisioning

    Efficient collaborative working is supported by object-level revision control across engineering disciplines.

    Engineering data created or updated by one discipline – process, mechanical, instrumentation or electrical – is issued to the rest of the project team at a controlled release level.

    Subscription and notification based

    Other engineering disciplines can confidently use this change-controlled data in their own workflows. Each discipline retains control of which changes to accommodate and when to do so, combining flexible and efficient working with robust control of data consistency.
