Our next generation of integrated 3D engineering and design tools are available as part of the cloud-based AVEVA™ Unified Engineering
What is AVEVA E3D Design?
The capabilities of AVEVA E3D Design, our industry-leading 3D engineering tool, are available as part of AVEVA Unified Engineering. Free your project information from silos and integrate it into existing workflows. By centralizing, tracking, and monitoring project data, your teams can collaborate seamlessly across locations, disciplines, and organizations in real time.
40%
increase in design efficiency at Atkins
30%
reduction in design time at Apply Sørco
30%
of material takeout saved at BLOM Maritime
20%
reduction of engineering hours at Aibel
Benefits

Greater engineering efficiency
Integrated engineering, design, and simulation data in a data-centric model of your plant allows designers to identify and resolve clashes between disciplines.

Superior change management
The software simplifies project management with detailed change history and real-time visibility of multidiscipline updates, including changes to linked schematics and datasheets.

Reduced engineering rework
By designing alongside all disciplines from a single data-centric environment, you can comprehensively detect clashes to eliminate costly on-site rework in the design stage.
Features

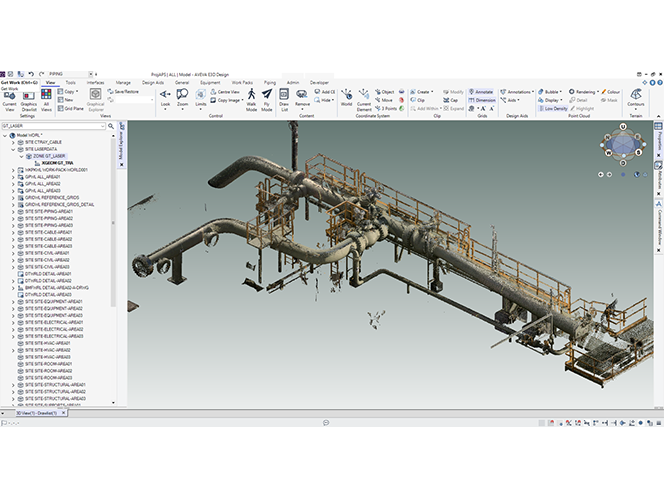

Import and design with laser scan technology
Import and interact with data from any laser scanner, including traditional static scanners as well as mobile, airborne, and hand-held devices regardless of manufacturer.

Automatic cross-discipline updates

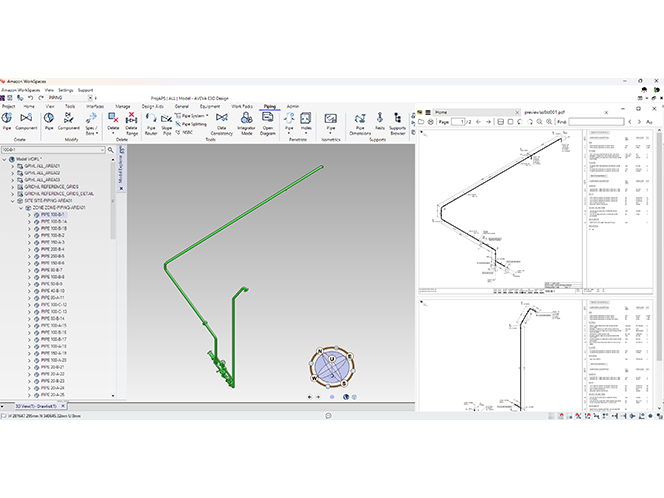

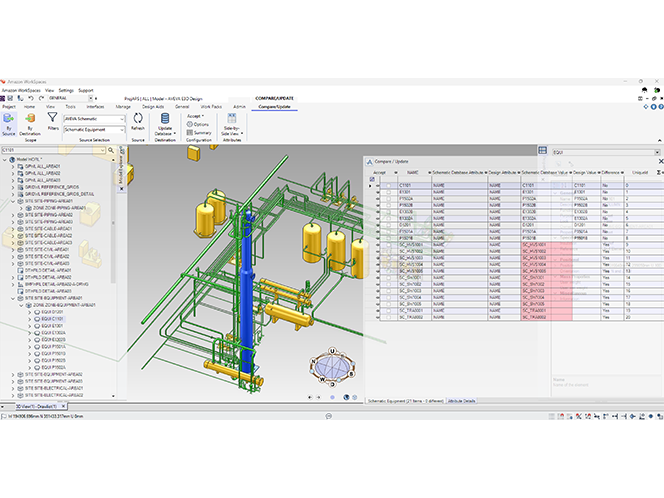

Directly integrate engineering and design data across disciplines and dimensions. Project updates in either 3D, or 2D and 2D tools are highlighted to their respective discipline teams to implement.

Generate reports and drawings from the 3D model

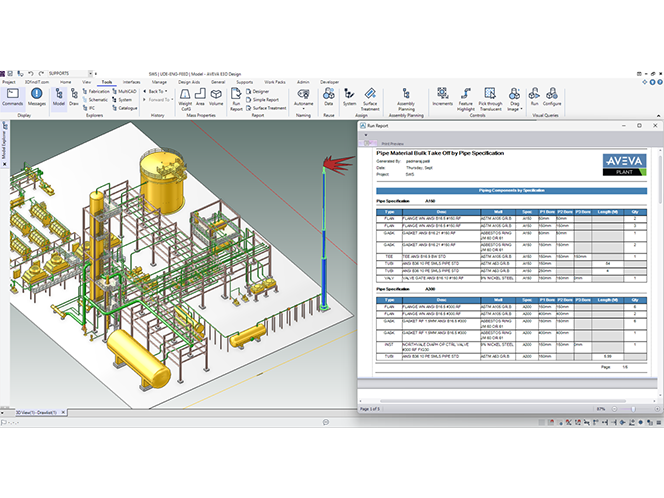

The software allows users to automatically generate drawings and reports directly from the 3D model, saving time and ensuring that construction uses validated, up-to-date information.

Verify construction alongside design intent
With integrated photorealistic laser scan data in the design environment, users can intuitively and accurately plan modification, design, and construction status verification against the design intent as construction progresses.

Automatic cable routing
These 3D design tools integrate with 1D and 2D electrical capabilities in AVEVA Unified Engineering. Users can share cable data from electrical schematics to ensure accurate cable routing based on configurable design rules and precise cable lengths.

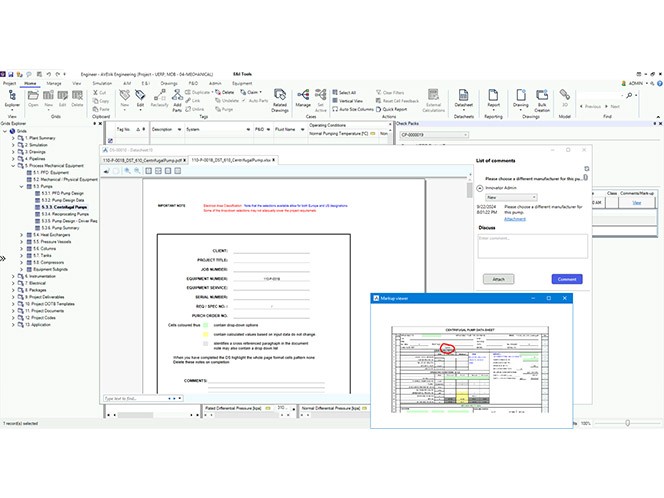

Asset lifecycle management
Closely track, audit, and manage deliverables information, including approvals, mark-ups and versioning to simplify project oversight and delivery.
Apply Sørco achieves 30% reduction in design time
The EPC firm uses laser scan technology and AVEVA E3D Design to engineer more efficiently. The firm can now win contracts with clients demanding lower project costs.

How can you use AVEVA E3D Design as part of AVEVA Unified Engineering?
Simplify complex capital projects

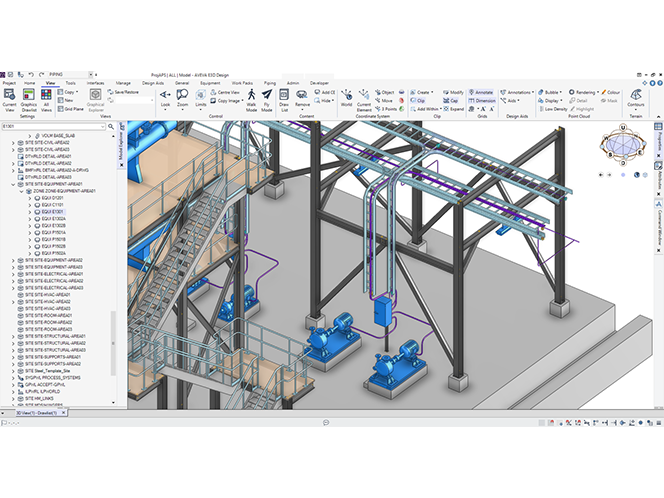

AVEVA E3D Design allows global, multi-discipline teams to work collaboratively on the same project data at the same time. This ensures fewer errors and design clashes across disciplines as design intent down to pipe structure can be verified against the model.
Generate drawings based on designs
The software allows teams to rapidly generate accurate drawings and deliverables directly from the design, which are updated in real time alongside the design.
Digitize project compliance
AVEVA E3D Design lets users configure design rules and contractual requirements with change highlighting, tracking and status management to streamline compliance.
FAQs
AVEVA Flex subscription program is a simple credits-based system that spans any mix of cloud, hybrid, and on-premises solutions across the AVEVA portfolio. You are in control with a pay-as-you-use approach that allows you to easily scale your solution set.
When used as part of AVEVA Unified Engineering, engineers and designers have access to a one-stop-shop of multidisciplinary engineering design capabilities. With a 1D/2D or 1D/2D/3D license for AVEVA Unified Engineering, you will gain access to not only AVEVA E3D Design, but the host of other in-built schematics tools (AVEVA Engineering, AVEVA P&ID and Diagrams, and AVEVA Electrical and Instrumentation).
Related products
AVEVA™ Unified Engineering
AVEVA Unified Engineering is a data-centric engineering environment. Engineer and collaborate across all project phases and multi-discipline teams in real time.
AVEVA™ Point Cloud Manager
Formerly Known As AVEVA LFM
AVEVA™ Point Cloud Manager is a cloud-enabled 3D data capture solution that facilitates production and visualization of scalable, reliable reality capture data sets.
AVEVA™ Enterprise Resource Management
Formerly Known As AVEVA ERM
End-to-end project execution solution covering the full project lifecycle—built for CapEx and marine projects, and unmatched in scope and integration.
AVEVA™ Asset Information Management
Accelerate information discovery and break down silos for fast, intuitive, in-context access to relevant data.
